SP10-SM55ZR80x

product description

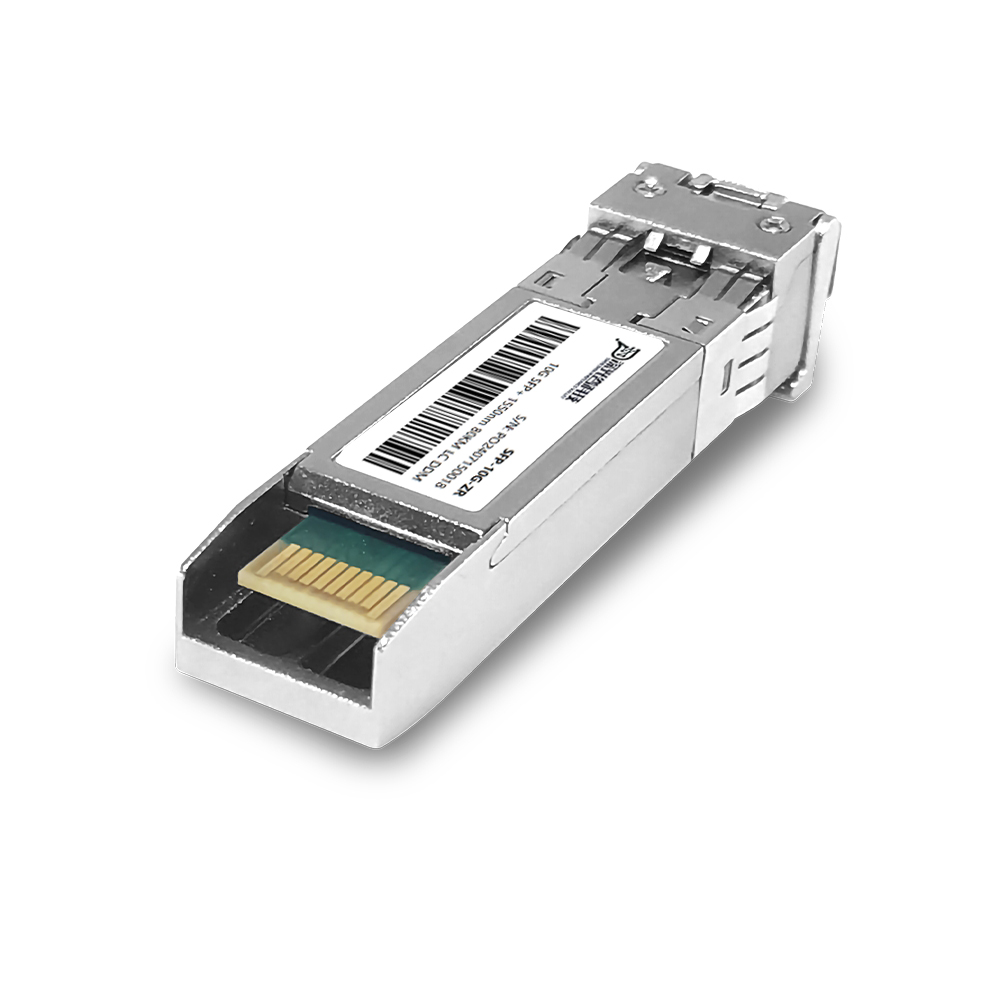

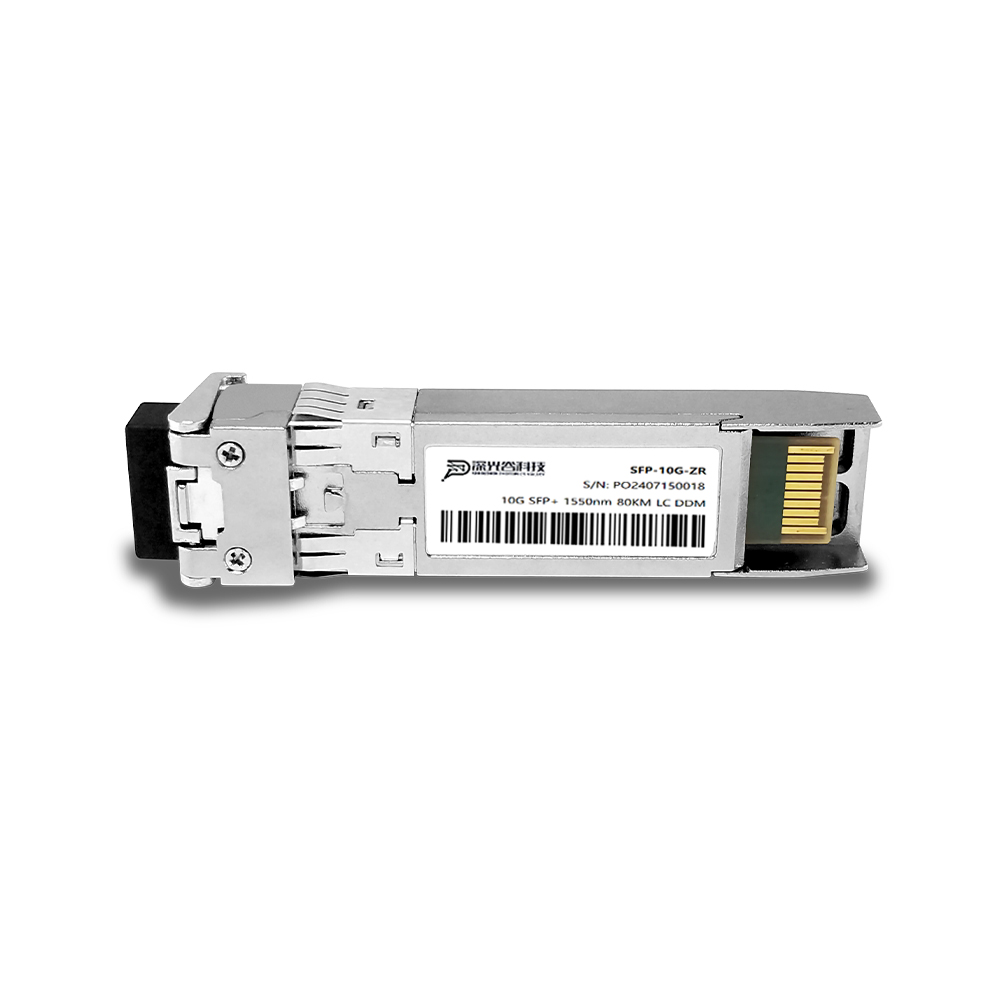

Photonics Valley’s SP10-SM55ZR80x SFP+ 10Gbps transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 80km at 1550nm, consists of three sections: a Cooled EML laser transmitter, an APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
  • Application
  • Performance
  • Specification

APPLICATIONS


  • 10Gbps Optical systems

  • 10GBASE-ZR at 10.3125Gbps

  • 10GBASE-ZW at 9.953Gbps

  •  LTE systems



PRODUCT FEATURES


  • Supports up to 10.7Gbps bit rates

  • Hot-pluggable SFP+ footprint

  • 1550nm Cooled EML and APD photodiode

  • Up to 80km for SMF transmission

  • Duplex LC, compliant with SFP+ MSA SFF-8472

  • Compatible with RoHS

  • Single +3.3V power supply

  • Real Time Digital Diagnostic Monitoring

  • Operating case temperature:

            Commercial: 0°C to +70°C

            Industrial: -40°C to +85°C



Ordering information


Part Number

Product

Data rate

wavelength

Laser Type

(TX/RX)

Power

Budget

Media

Type

Distance

Temp

SP10-SM55ZR80C/ISFP+ ZR10.3Gbps1550nmEML/APD23dBSMF80km0~70℃/-40~85℃
