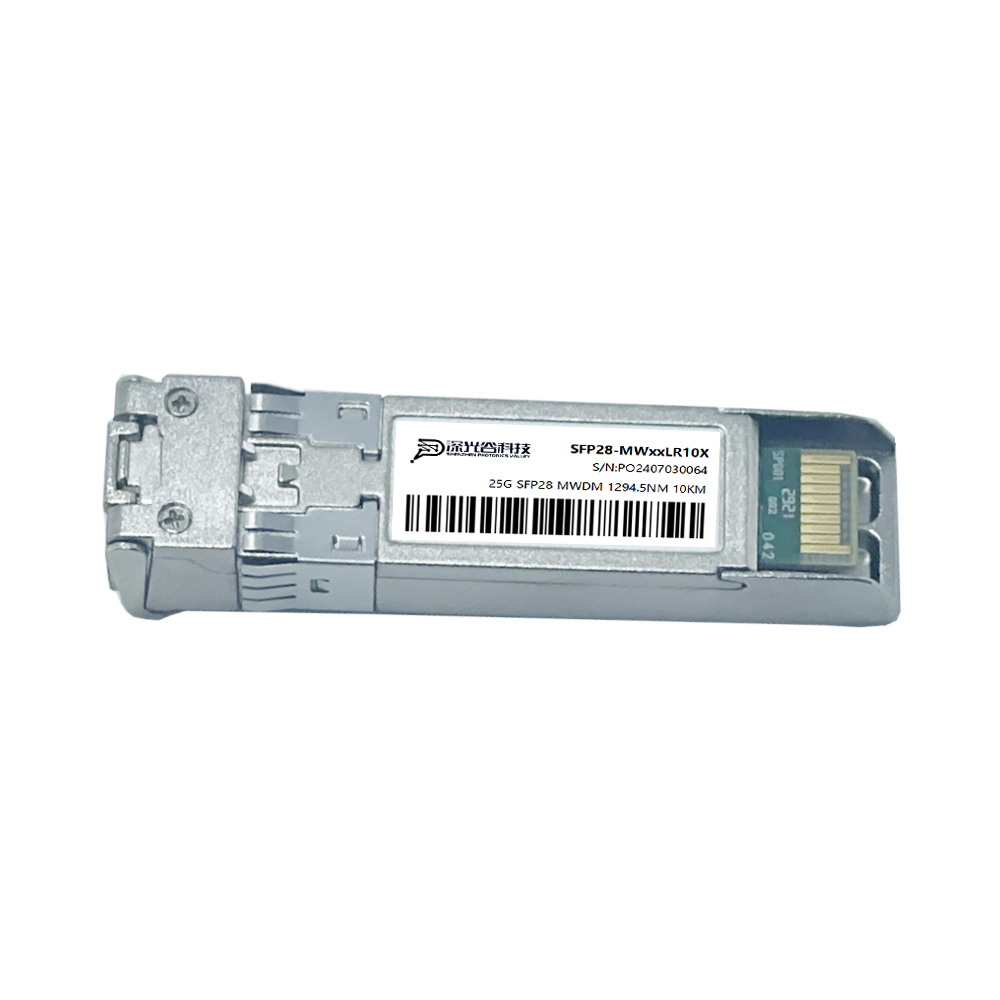

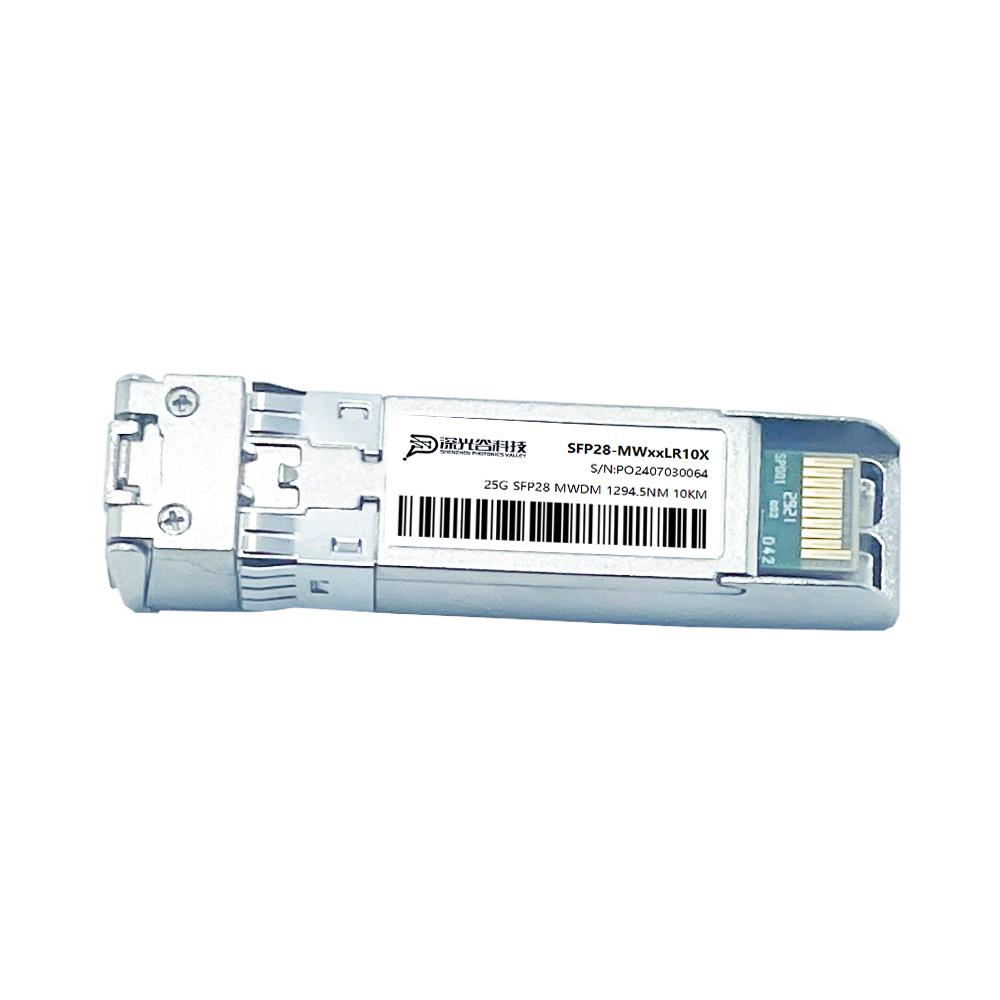

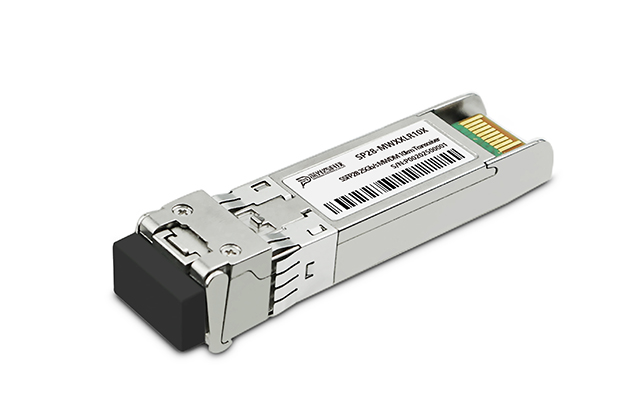

SP28-MWXXLR10X

product description

25G MWDM is designed for Open-WDM/MWDM 5G fronthaul solution. It uses MWDM laser and PIN receiver, transmisstion distance up to 10km, supports -40~85℃ industrial temperature. This product features with pilot tone, which enable remote monitoring of modules operation, adminitraton and matainence.

purchase intention Manual download

Application
Performance
Specification

APPLICATIONS

25GBASE-LR
eCPRI and CPRI 10

PRODUCT FEATURES

Up to 25.78Gbps Data Links
Up to 10km transmission on SMF
MWDM Laser and PIN-TIA receiver
Build-in dual CDR , for lower EMI
2-wire interface with integrated Digital Diagnostic monitoring
Hot-pluggable SFP28 footprint
Specifications compliant with SFF 8472
Support Open-WDM OAM Application
Compliant with SFF-8402 with LC connector
Single 3.3V power supply
Support Open-WDM OAM Application
Operating case temperature:

Commercial:0 to 70 °C

Industrial: -40 to 85 °C

Ordering information

Part Number	Data rate(Gbps)	Media	Wavelength(nm)	Transmission Distance(km)	Bail Latch Color	Temp
SP28-MW01LR10C/I	25.78	SM fiber	1267.5	10	Blue	0~70℃/-40~85℃
SP28-MW02LR10C/I	25.78	SM fiber	1274.5	10	Red	0~70℃/-40~85℃
SP28-MW03LR10C/I	25.78	SM fiber	1287.5	10	Blue	0~70℃/-40~85℃
SP28-MW04LR10C/I	25.78	SM fiber	1294.5	10	Red	0~70℃/-40~85℃
SP28-MW05LR10C/I	25.78	SM fiber	1307.5	10	Blue	0~70℃/-40~85℃
SP28-MW06LR10C/I	25.78	SM fiber	1314.5	10	Red	0~70℃/-40~85℃
SP28-MW07LR10C/I	25.78	SM fiber	1327.5	10	Blue	0~70℃/-40~85℃
SP28-MW08LR10C/I	25.78	SM fiber	1334.5	10	Red	0~70℃/-40~85℃
SP28-MW09LR10C/I	25.78	SM fiber	1347.5	10	Blue	0~70℃/-40~85℃
SP28-MW10LR10C/I	25.78	SM fiber	1354.5	10	Red	0~70℃/-40~85℃
SP28-MW11LR10C/I	25.78	SM fiber	1367.5	10	Blue	0~70℃/-40~85℃
SP28-MW12LR10C/I	25.78	SM fiber	1374.5	10	Red	0~70℃/-40~85℃
